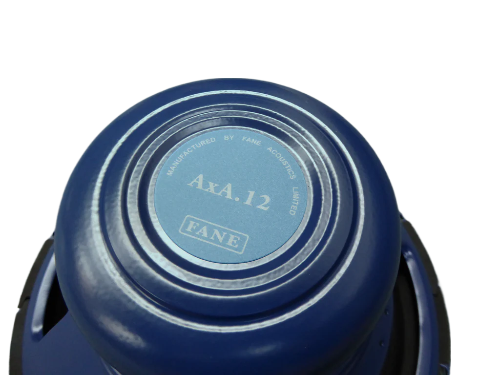

Fane AXA.12 100


Ohms: 8
Price:
Sale price£229.00

Description

Discontinued model, limited stock available!

Modern take on a vintage classic, the Fane AXA.12 delivers a classic alnico tone with a much higher power handling.
Designed for warm clean tones with smooth break up. Excellent for jazz, blues and rock tones.


Specification

·      Nominal Basket Diameter - 304.8mm

·      Impedance - 8Ω

·      RMS Power Rating - 100W

·      Frequency response - 70Hz - 5.5kHz

·      Sensitivity (1W/1m) - 101db

·      Voice Coil Diameter - 44.45mm

·      Resonant Frequency (Fs) - 85Hz

·      Impedance (Re) - 6.5Ω

·      Magnet Weight - 0.96kg

Mounting Information

·      Overall Diameter - 310mm

·      Baffle Cut-out Diameter - 286mm

·      Bolt Circle Diameter - 298mm

·      Overall Depth - 170mm

·      Mounting Holes - 8

·      Mounting Hole Diameter - 7mm

·      Weight  - 4.25kg

Materials

·      Basket - Pressed steel

·      Magnet - Alnico

·      Voicecoil - Copper
